LattePanda-Mu/Electricals/Examples/[DFR1142]Lite Carrier for LattePanda Mu
History
alphaarea d5d744072f update readme
2024-05-16 15:54:32 +08:00
..
A_HDJ_Library.pretty
Initial commit
2024-04-11 00:59:30 +08:00
Module_LattePanda.pretty
Initial commit
2024-04-11 00:59:30 +08:00
[DFR1142]Lite Carrier for LattePanda Mu 3dmodel.step.7z
upload 3dmodels
2024-05-16 15:45:55 +08:00
[DFR1142]Lite Carrier for LattePanda Mu PCB.pdf
Initial commit
2024-04-11 00:59:30 +08:00
[DFR1142]Lite Carrier for LattePanda Mu schematic.pdf
Initial commit
2024-04-11 00:59:30 +08:00
[DFR1142]Lite Carrier for LattePanda Mu.jpg
upload pic
2024-05-16 15:46:09 +08:00
[DFR1142]Lite Carrier for LattePanda Mu.kicad_dru
Initial commit
2024-04-11 00:59:30 +08:00
[DFR1142]Lite Carrier for LattePanda Mu.kicad_pcb
fix clkreq numbering error
2024-04-29 11:58:16 +08:00
[DFR1142]Lite Carrier for LattePanda Mu.kicad_pro
Initial commit
2024-04-11 00:59:30 +08:00
[DFR1142]Lite Carrier for LattePanda Mu.kicad_sch
Initial commit
2024-04-11 00:59:30 +08:00
A_HDJ_Library.kicad_sym
Initial commit
2024-04-11 00:59:30 +08:00
fan_temp.kicad_sch
Initial commit
2024-04-11 00:59:30 +08:00
fan&temp.kicad_sch
Initial commit
2024-04-11 00:59:30 +08:00
fp-lib-table
Initial commit
2024-04-11 00:59:30 +08:00
Gigabit Ethernet.kicad_sch
Initial commit
2024-04-11 00:59:30 +08:00
GPIO.kicad_sch
Initial commit
2024-04-11 00:59:30 +08:00
HDMI.kicad_sch
Initial commit
2024-04-11 00:59:30 +08:00
LattePanda Module.kicad_sch
fix clkreq numbering error
2024-04-29 11:58:16 +08:00
M.2 E&M Key.kicad_sch
Initial commit
2024-04-11 00:59:30 +08:00
MCU_Module_LattePanda.kicad_sym
fix clkreq numbering error
2024-04-29 11:58:16 +08:00
PCIe x4.kicad_sch
Initial commit
2024-04-11 00:59:30 +08:00
PSU.kicad_sch
Initial commit
2024-04-11 00:59:30 +08:00
README.md
update readme
2024-05-16 15:54:32 +08:00
RTC.kicad_sch
Initial commit
2024-04-11 00:59:30 +08:00
sym-lib-table
Initial commit
2024-04-11 00:59:30 +08:00
USB2.0&USB3.0.kicad_sch
Initial commit
2024-04-11 00:59:30 +08:00

README.md

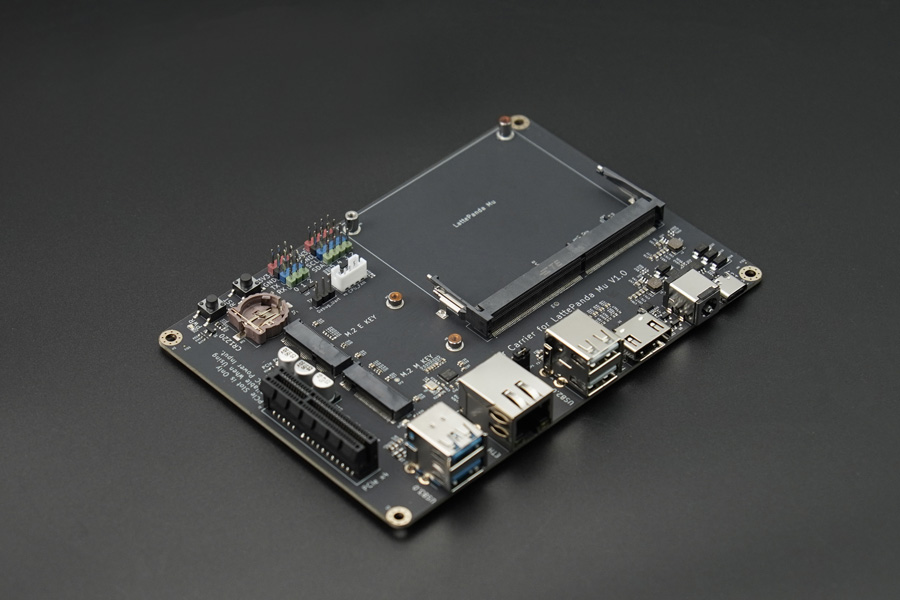

DFR1142 LattePanda Mu 拿铁熊猫 基础载板

DFR1142

技术规格

电源输入

  • USB Type-C PD: 15V (Max 3A)
  • DC 5.5x2.5mm: 12~20V (Max 10A)

内部接口

  • PCIe 3.0 x4 插槽 (仅当使用 12V 电源时可用)
  • M.2 M Key 2230 (PCIe 3.0 x1)
  • M.2 E Key 2230 (PCIe 3.0 x1, USB2.0)
  • RTC 电池插座 (CR1220 3V)
  • CPU 风扇插座
  • Gravity-4P UART
  • Gravity-4P I2C

外部接口

  • USB 3.2 10Gbps x2
  • 千兆以太网
  • USB 2.0 x2
  • HDMI 2.0

尺寸

3.5 英寸, 146mm×102mm
